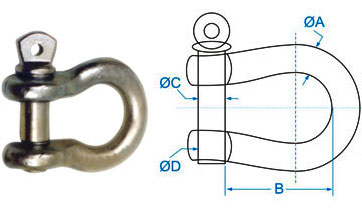

Clevises
| ART. |
Body Dia. ØA mm |
Usable Length B mm |
Pin Dia. ØC mm |
Thread Dia. ØD mm |
Weight lbs. |
| SDI-CS –– 01 |
6.35 |
25.87 |
7.93 |
5/16” UNC |
0.14 |
| SDI-CS –– 02 |
7.93 |
31.75 |
9.52 |
3/8” UNC |
0.22 |
| SDI-CS –– 03 |
9.52 |
36.51 |
11.11 |
7/16” UNC |
0.31 |
| SDI-CS –– 04 |
11.11 |
42.85 |
12.7 |
1/2” UNC |
0.53 |
| SDI-CS –– 05 |
12.7 |
49.21 |
15.87 |
5/8” UNC |
0.75 |
| SDI-CS –– 06 |
15.87 |
63.5 |
19.05 |
3/4” UNC |
1.1 |
| SDI-CS –– 07 |
19.05 |
76.2 |
22.22 |
7/8” UNC |
2.75 |
| SDI-CS –– 08 |
22.22 |
82.55 |
25.4 |
1” UNC |
3.58 |
| SDI-CS –– 09 |
25.4 |
95 |
28.57 |
1-1/8”UNC |
5.4 |
| SDI-CS – 10 |
28.57 |
7107.95 |
31.75 |
1-1/4” UNC |
7 |
| SDI-CS–– 11 |
13.75 |
114.6 |
34.92 |
1-3/8” UNC |
9.5 |

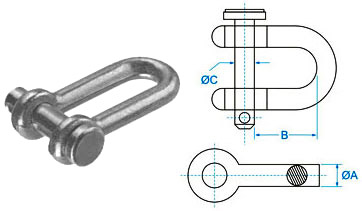

| Clevises (Utility) |
| ART. |
Body Dia. ØA mm |
Usable Length B mm |
Pin Dia. ØC mm |
Weight lbs. |
| SDI-CU – 01 |
6.35 |
22.22 |
7.93 |
0.1 |
| SDI-CU – 02 |
7.93 |
25.4 |
9.52 |
0.17 |
| SDI-CU – 03 |
9.52 |
31.75 |
11.11 |
0.28 |
| SDI-CU – 04 |
11.11 |
38.05 |
12.7 |
0.42 |
| SDI-CU – 05 |
12.7 |
42.96 |
15.87 |
0.66 |
| SDI-CU – 06 |
15.87 |
50.8 |
19.05 |
1.2 |
