Shridhar Industries
Request a Quote

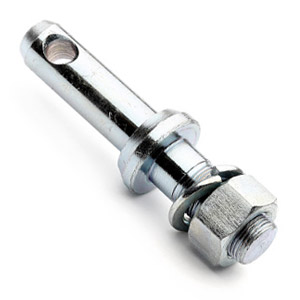

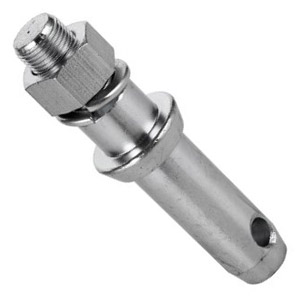

Lower Link Pins

Lower Link Pin
Perno Per Attacco Attrezzi
ART. A B C D E F G H I
SDI-LLP2201M 22 50 130 40 5 20x1.5 20 32 38
SDI-LLP2202M 22 50 140 40 14 22x1.5 22 20 38
SDI-LLP2203M 22 50 140 40 14 22x1.5 28 30 38
SDI-LLP2204U 22 51 149 54 11 7/8”UNF 22 30 36
SDI-LLP2205U 22 51 140 48 6 3/4”UNF 19 30 36
SDI-LLP2206U 22 51 140 43 11 5/8”UNF 22 30 36
SDI-LLP2207U 22 51 146 38 22 7/8”UNF 28.6 30 36
SDI-LLP2208U 22 51 146 50.8 9.5 7/8”UNC 28.6 32 38
SDI-LLP2209U 22 51 146 50.8 9.5 1”UNF 25.4 30 36
SDI-LLP2210U 22 51 138 38 14 7/8”UNF 28.6 30 36
SDI-LLP2211M 22 51 128 38 10 20x1.5 20 30 36
SDI-LLP2212M 22 51 128 38 10 20x1.5 20 30 36
SDI-LLP2213M 22 60 150 40 20 22x1.5 22 32 38
SDI-LLP2214M 22 60 150 40 20 22x1.5 28 32 38
SDI-LLP2215M 22 60 146 40 20 22x1.5 25 32 32
SDI-LLP2216U 22 51 140 45 10 7/8”UNF 22 30 34
SDI-LLP2217U 22 64 165 56 16 7/8”UNF 22.2 32 38
SDI-LLP2518M 25 60 150 40 20 22x1.5 25 34 40
SDI-LLP2519M 25 60 150 40 20 22x1.5 28 32 38
SDI-LLP2820M 28 50 155 30 50 30x2.0 30 48 50
SDI-LLP2821M 28 55 150 45 14 22x1.5 24 36 42
SDI-LLP2822M 28 55 150 45 15 24x1.5 24 37 43
SDI-LLP2823M 28 55 150 45 14 27x1.5 28 38 43
Lower Link Pin
Perno Per Attacco Attrezzi
ART. A B C D E F G H I
SDI-LLP2824M 28 58 147 48 10 27x1.5 27 37 43
SDI-LLP2825M 28 58 147 48 10 27x1.5 27 48 50
SDI-LLP2826M 28 60 150 45 14 27x1.5 22 38 44
SDI-LLP2827M 28 60 150 40 20 27x1.5 28 38 44
SDI-LLP2828M 28 60 150 40 20 27x1.5 22 38 44
SDI-LLP2829M 28 60 150 40 20 27x1.5 24 38 44
SDI-LLP2830M 28 62 147 38 20 27x1.5 28 48 50
SDI-LLP2831M 28 64 160 38 25 27x1.5 28 38 44
SDI-LLP2832M 28 65 160 30 40 30x2 30 48 50
SDI-LLP2833M 28 71 160 40 30 30x2 30 48 50
SDI-LLP2834U 28.6 51 133.5 42 11 7/8”UNF 22 37 43
SDI-LLP2835U 28 51 159 60 16 9/8”UNF 28.6 38 44
SDI-LLP2836U 28.6 51 149 36.5 24 3/4”UNF 25.4 38 44
SDI-LLP2837U 28.6 57 159 60 16 9/8”UNF 28.6 37 43
SDI-LLP2838U 28.6 60 149 51 9.5 9/8”UNF 28.6 37 43
SDI-LLP2839U 28.6 60 149 50.8 9.5 1”UNF 25.4 38 44
SDI-LLP2840U 28.6 60 149 54 6.3 3/4”UNF 19 38 44
SDI-LLP2841U 28.6 60 149 38 22 7/8”UNF 28.6 38 44
SDI-LLP2842U 28.6 60 136.5 35 12.7 7/8”UNF 22 38 44
SDI-LLP2843U 28.6 60 145 44 12.7 7/8”UNF 22 38 44
SDI-LLP2844U 28.6 63.15 160 54 14 7/8”UNF 22.2 38 44
SDI-LLP3645U 36 54 149 48 16 9/8”UNF 28.6 46 52
SDI-LLP3646U 36.5 58 149 45 14 1.3/8”UNF 35 45 52
SDI-LLP3647U 36.5 61 165 60 11 27x1.5 27 48 50
