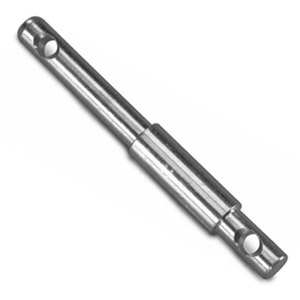

Double Implement/Mounting Pin

Implement Pin
Perno Universale
ART. A B C D E F G H
SF-DMP19156 19 16 74 82 156 16.5 55 5
SF-DMP22168 22 16 80 88 168 12 68 5
SF-DMP25166 25 19 85 81 166 18 53 5
SF-DMP25160 25 19 80 80 160 18 53 5
SF-DMP25180 25 19 90 90 180 18 57 5
SF-DMP28180 28 22 90 90 180 18 57 5
SF-DMP28175 28 22 90 85 175 16.5 50 6
SF-DMP28180 28 22 90 90 180 16.5 61 6
SF-DMP32178 32 25 83 95 178 18 62 6.5
SF-DMP32172 32 25 80 92 172 22 55 6.5

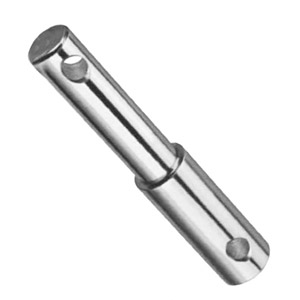

Inter Changeable Implement Mounting Pin
Perno Intercambiabile Per Attacco Attrezzi
ART. A B C D E F G H I J
SF-DMP20200 22 22 28 55 115 40 67 12 6.5 200
SF-DMP25200 25 22 28 55 115 40 67 12 6.5 200

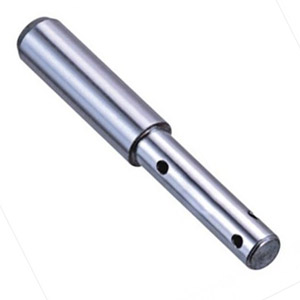

Double Implement Mounting Pin
Perno Doppio Intercambiabile Per Attacco Attrezzi
ART. A B C D E F G H I J
SF-DMP25210 25 19 40 70 100 80 20 12 12 210
SF-DMP25212 25 19 38 96 78 62 22 12 12 212
SF-DMP25170 25 19 26 66 78 70 18 6.5 6.5 170
SF-DMP28200 28 22 35 75 90 75 20 12 12 200
SF-DMP28210 28 22 40 70 100 80 20 12 12 210
SF-DMP28230 28 22 40 90 100 80 20 12 12 230
SF-DMP28229 28.6 22.2 40 89 100 80 20 12 12 229
SF-DMP32250 32 25 40 115 95 81 26 12 12 250
SF-DMP36277 36.5 28 36 150 91 81 26 12 12 277
SF-DMP36290 36.5 28 45 150 95 80 26 12 12 290

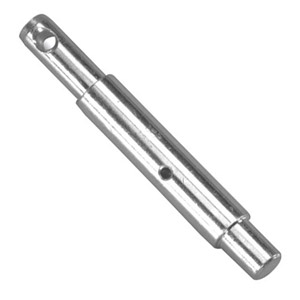

Weld On End Mounting Pin
Perno Doppio Da Saldarre Per Attacco Attrezzi
ART. A B C D E F G
SF-WOEMP0 28 22 62.5 84.5 70.5 47 12
SF-WOEMP1 28 22 76.5 104.5 88 60 12
SF-WOEMP2 28 22 85 105 85 62 12
SF-WOEMP3 28 22 103 78 60 87.3 12
SF-WOEMP4 28 22 120 56 39 92 12
SF-WOEMP5 28.6 22 76 105 87.3 60 12
SF-WOEMP6 34 28 61 80 62 43.5 12
