Shridhar Industries
Request a Quote

Top Link End

TOP LINK END (UNC)

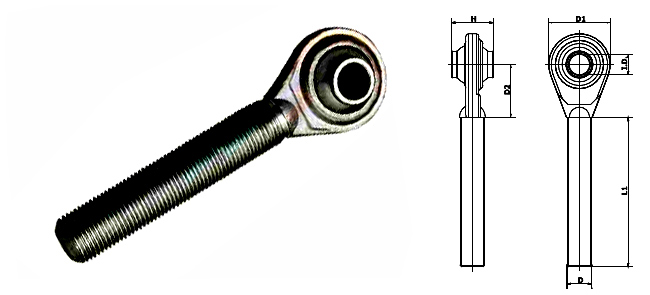

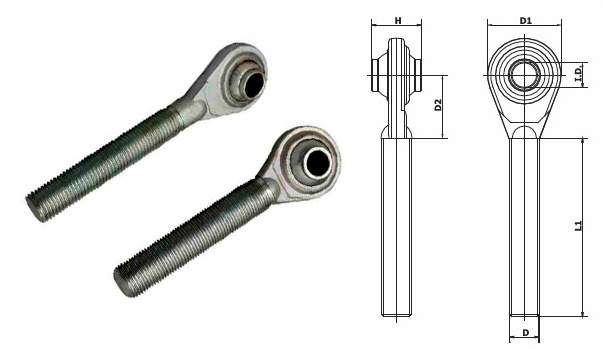

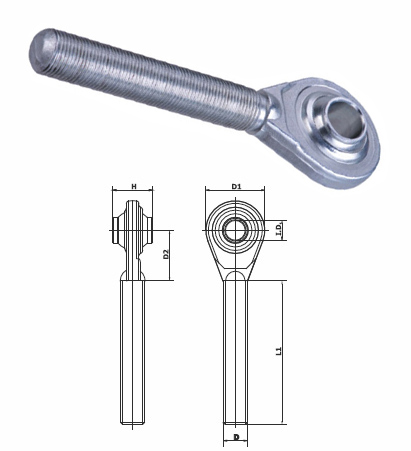

ART. CAT I.D. THREAD D L1 D1 D2 H
SDITLE001 0 16 3/4"UNC R 105 47 30 25.4
SDITLE002 0 16 3/4"UNC L 105 47 30 25.4
SDITLE003 1 19 1.1/8"UNC R 150 58 53 44
SDITLE004 1 19 1.1/8"UNC L 150 58 53 44
SDITLE005 2 25.4 1.1/8"UNC R 180 66 55 51
SDITLE006 2 25.4 1.1/8"UNC L 180 66 55 51
SDITLE007 2 25.4 1.1/4"UNC R 180 76 62 51
SDITLE008 2 25.4 1.1/4"UNC L 180 76 62 51
SDITLE009 3 32 1.3/8"UNC R 155 89 76 51
SDITLE010 3 32 1.3/8"UNC L 155 89 76 51
TOP LINK END (METRIC)
ART. CAT I.D. THREAD D L1 D1 D2 H
SDITLE011 0 16 M20X2.5R 85 48 40 25.4
SDITLE012 0 16 M20X2.5L 85 48 40 25.4
SDITLE013 1 19 M22X2.5R 95 58 50 44
SDITLE014 1 19 M22X2.5L 95 58 50 44
SDITLE015 1 19 M22X2.5R 115 58 50 44
SDITLE016 1 19 M22X2.5L 115 58 50 44
SDITLE017 1 19 M24X2.5R 115 58 50 44
SDITLE018 1 19 M24X2.5L 115 58 50 44
SDITLE019 1 19 M24X3 R 115 58 50 44
SDITLE020 1 19 M24X3 L 115 58 50 44
SDITLE021 1 19 M24X3 R 155 62 50 44
SDITLE022 1 19 M24X3 L 155 62 50 44
SDITLE023 2 25.4 M24X3 R 165 75 55 51
SDITLE024 2 25.4 M24X3 L 165 75 55 51
SDITLE025 1 19 M27X3 R 150 58 50 44
SDITLE026 1 19 M27X3 L 150 58 50 44
SDITLE027 2 25.4 M27X3 R 165 66 50 51
SDITLE028 2 25.4 M27X3 L 165 66 50 51
SDITLE029 2 25.4 M27X3 R 165 75 50 51
SDITLE030 2 25.4 M27X3 L 165 75 50 51
SDITLE031 1 19 M30X3 R 155 58 50 44
SDITLE032 1 19 M30X3 L 155 58 50 44
SDITLE033 1 19 M30X3.5 R 155 58 50 44
SDITLE034 1 19 M30X3.5 L 155 58 50 44
SDITLE035 2 25.4 M30X3 R 165 75 55 51
SDITLE036 2 25.4 M30X3 L 165 75 55 51
SDITLE037 2 25.4 M30X3.5 R 165 75 55 51
SDITLE038 2 25.4 M30X3.5 L 165 75 55 51
SDITLE039 2 25.4 M36X3 R 165 80 55 51
SDITLE040 2 25.4 M36X3 L 165 80 55 51
SDITLE041 2 25.4 M36X3 R 175 80 55 51
SDITLE042 2 25.4 M36X3 L 175 80 55 51
SDITLE043 2 25.4 M36X3 R 200 96 70 51
SDITLE044 2 25.4 M36X3 L 200 96 70 51
SDITLE045 3 32 M36X3 R 200 96 70 51
SDITLE046 3 32 M36X3 L 200 96 70 51
SDITLE047 2 25.4 M40X3 R 170 80 60 51
SDITLE048 2 25.4 M40X3 L 170 80 60 51
TOP LINK END (HEAVY DUTY)
ART. CAT I.D. A THREAD D L1 D1 D2 H
SDITLE049 2 25.4 M30X3.5 R 170 80 55 51
SDITLE050 2 25.4 M30X3.5 L 170 80 55 51
SDITLE051 3 32 M40X3 R 200 96 70 51
SDITLE052 3 32 M40X3 L 200 96 70 51
SDITLE053 2 25.4 M42X3 R 200 96 70 51
SDITLE054 2 25.4 M42X3 L 200 96 70 51
SDITLE055 3 32 M42X3 R 200 96 70 51
SDITLE056 3 32 M42X3 L 200 96 70 51
TOP LINK END (REPLACES FORD)
ART. CAT I.D. A THREAD D L1 D1 D2 H
SDITLE057 1 19 1.1/4"UNC L 128 58 208 44
SDITLE058 2 25.4 1.1/4"UNC L 128 76 208 51
SDITLE059 2 25.4 1.1/4"UNC R 168 76 86 51
TOP LINK END (REPLACES JD)
ART. CAT I.D. A THREAD F L1 D1 D2 H
SDITLE060 2 25.4 1.1/8"UNC R 145 66 162 51
SDITLE061 1 20 1.1/8"UNC L 160 66 56 44
SDITLE062 2 25.4 M27X3 R 145 66 162 51
SDITLE063 1 20 M27X3 L 160 66 56 44
TOP LINK END (REPLACES MTZ)
ART. I.D. A THREAD D L1 D1 D2 H
SDITLE068 22.1 M30(TPZ)RH 165 75 56 51
SDITLE069 22.1 M30(TPZ)LH 165 75 56 51
