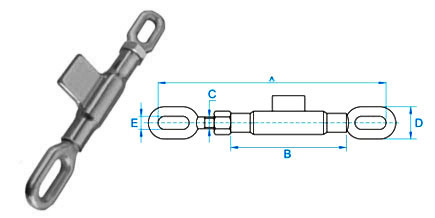

Stablizer Assembly
| Stablizer Assembly | ||||||
| ART. | A (MIN MAX) | B | C | D | E | |
| SDI-SA 16 | 245 | 315 | 130 | M16X2 | 38 | 15 |
| SDI-SA 18 | 245 | 320 | 135 | M18X2.5 | 38 | 15 |
| SDI-SA 20 | 280 | 350 | 130 | M20X2.5 | 38 | 15 |
| SDI-SA 22 | 280 | 350 | 150 | M22X2.5 | 38 | 15 |
| SDI-SA 24 | 300 | 370 | 150 | M24X2.5 | 55 | 25 |
| SDI-SA 25 | 300 | 370 | 150 | M24X2.5 | 55 | 25 |
| SDI-SA 25 MTZ | 255 | 330 | 140 | M18X2.5 | 32 | 20 |

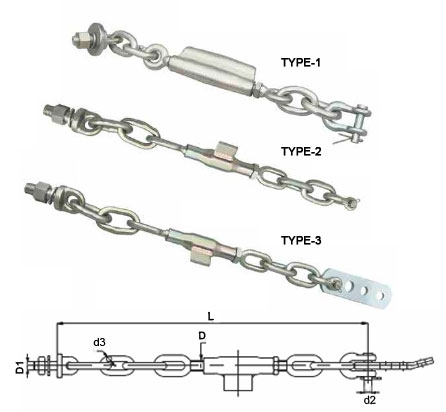

| STABLIZER CHAIN APSEMBLY | |||||||
| ART. | TYPE | L-MIN | THREAD D |
D1 | D2 | D3 | N.O. LINK |
| SDI-SCA01 | 1 | 430 | 16X2 | 18X2.5 | 12 | 12 | 2+2 |
| SDI-SCA02 | 1 | 370 | 16X2 | 22X1.5 | 14-D | 12 | 1+1 |
| SDI-SCA03 | 1 | 520 | 16X2 | 18X2.5 | 12 | 12 | 3+3 |
| SDI-SCA04 | 1 | 450 | 16X2 | 22X1.5 | 14-D | 12 | 2+1 |
| SDI-SCA05 | 1 | 430 | 16X2 | 22X1.5 | 14-D | 14 | 1+1 |
| SDI-SCA06 | 1 | 570 | 16X2 | 18X2.5 | 12 | 12 | 4+4 |
| SDI-SCA07 | 1 | 370 | 16X2 | 22X1.5 | 14-D | 14 | 1+1 |
| SDI-SCA08 | 2 | 440 | 20X2.5 | 20X2.5 | 12 | 12 | 1+1 |
| SDI-SCA09 | 2 | 570 | 20X2.5 | 20X2.5 | 14 | 12 | 2+2 |
| SDI-SCA10 | 2 | 690 | 20X2.5 | 20X2.5 | 14 | 12 | 3+3 |
| SDI-SCA11 | 2 | 620 | 20X2.5 | 20X2.5 | 14 | 12 | 3+2 |
| SDI-SCA12 | 2 | 500 | 20X2.5 | 24X2.0 | 16 | 14 | 1+2 |
| SDI-SCA13 | 3 | 620 | 20X2.5 | 20X2.5 | 14 | 12 | 3+2 |
| SDI-SCA14 | 3 | 570 | 20X2.5 | 20X2.5 | 14 | 12 | 2+2 |

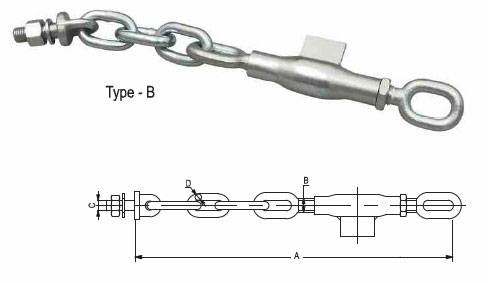

| STABILIZER CHAIN APSEMBLY (TYPE B) | |||||
| ART. | A | B | C | D | N.O. LINK |
| SDI-SCA-B1 | 400 | M22X2.5 | M20X2.5 | 14 | 1 |
| SDI-SCA-B2 | 480 | M22X2.5 | M20X2.5 | 14 | 3 |
| SDI-SCA-B3 | 580 | M22X2.5 | M20X2.5 | 14 | 5 |
| SDI-SCA-B4 | 680 | M22X2.5 | M20X2.5 | 14 | 7 |
| SDI-SCA-B5 | 400 | M24X2.5 | M20X2.5 | 14 | 1 |
| SDI-SCA-B6 | 480 | M24X2.5 | M20X2.5 | 14 | 3 |
| SDI-SCA-B7 | 580 | M24X2.5 | M20X2.5 | 14 | 5 |
| SDI-SCA-B8 | 680 | M24X2.5 | M20X2.5 | 14 | 7 |

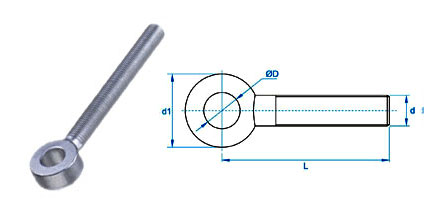

| Stabilizer Ends | ||||
| Testa Tonda | ||||
| ART. | L | D | d1 | D |
| SDI-SE01 | 97 | 16X2 | 46 | 18 |
| SDI-SE02 | 115 | 20X2.5 | 46 | 18 |
| SDI-SE03 | 115 | 22X2.5 | 50 | 20 |

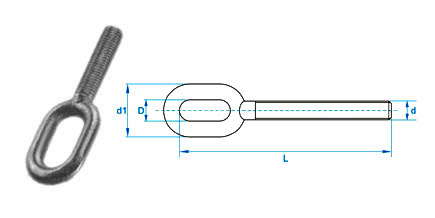

| Stabilizer Ends | ||||
| Testa Ad Asola | ||||
| ART. | L | D | d1 | D |
| SDI-SE04 | 122 | 18X2.5 | 39 | 14.5 |
| SDI-SE05 | 127 | 20X2.5 | 39 | 14.5 |
| SDI-SE06 | 134 | 22X2.5 | 55 | 2.5 |
