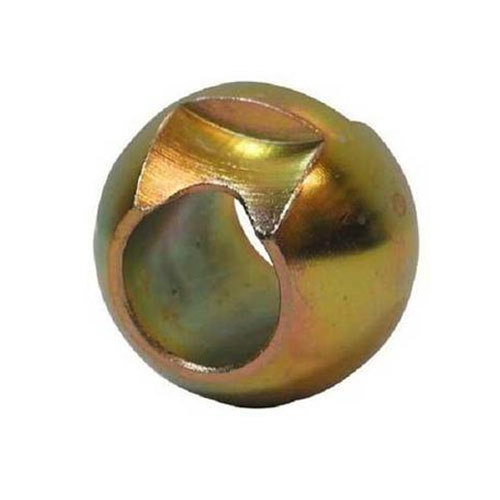

Lower Link Ball
| BALL WITHOUT COLLAR (HEAT TREATED 58-62 HRC - OPTIONAL) | |||
| BORE TOLERANCE A12/A13 | |||
| ART. | B | A | C |
| SDI-LLB001 | 16 | 28 | 20 |
| SDI-LLB002 | 16 | 32 | 25.4 |
| SDI-LLB003 | 19 | 44 | 35 |
| SDI-LLB004 | 22.1 | 44 | 35 |
| SDI-LLB005 | 22.1 | 48 | 35 |
| SDI-LLB006 | 28.4 | 48 | 35 |
| SDI-LLB007 | 25.4 | 50 | 38 |
| SDI-LLB008 | 25.4 | 50 | 40 |
| SDI-LLB009 | 28.4 | 50 | 38 |
| SDI-LLB010 | 35 | 54 | 35 |
| SDI-LLB011 | 22.1 | 56 | 35 |
| SDI-LLB012 | 22.1 | 56 | 45 |
| SDI-LLB013 | 25.4 | 56 | 35 |
| SDI-LLB014 | 25.4 | 56 | 45 |
| SDI-LLB015 | 28.4 | 56 | 35 |
| SDI-LLB016 | 28.4 | 62 | 45 |
| SDI-LLB017 | 28.4 | 63.5 | 45 |
| SDI-LLB018 | 28.4 | 64 | 45 |
| SDI-LLB019 | 28.4 | 64 | 54 |
| SDI-LLB020 | 37.1 | 64 | 45 |
| SDI-LLB021 | 38 | 64 | 45 |
| SDI-LLB022 | 37 | 85 | 57 |
| SDI-LLB023 | 51 | 85 | 57 |
| Ball (Double Bore) | |||
| Braccio 3 Punto Completo | |||
| ART. | A | B | C |
| SDI001(22.1/28.7)45 | 56 | 22.1/28.7 | 44.5 |
| Ball (With Cut) | |||||
| ART. | A | B | C | D | E |
| SDI562235 | 56.5 | 22 | 35 | 10 | R35 |
| SDI562845 | 56.5 | 28.6 | 44.5 | 10 | R35 |
| SPACERS | |||
| ART. | A | B | C |
| SDI56287 | 28 | 56 | 7 |
| SDI64287 | 28 | 64 | 7 |
| SDI64387 | 38 | 64 | 7 |
