Trailer Jacks

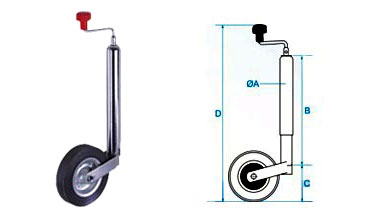

| Jockey Wheel Parking Jack | ||||||
| ART. | A Pipe Diameter | Wheel Size | Pipe Length | B | C | D |
| SDI-JWPJ01 | 35 | 160x43 | 220 | 310 | 100 | 465 |
| SDI-JWPJ02 | 42 | 200x50 | 195 | 390 | 120 | 590 |
| SDI-JWPJ03 | 48 | 200x50 | 195 | 390 | 120 | 590 |
| SDI-JWPJ04 | 48 | 250x85 | 175 | 420 | 150 | 625 |
| SDI-JWPJ05 | 60 | 255x80 | 400 | 430 | 150 | 720 |
| SDI-JWPJ06 | 60 | 220x70 | 500 | 560 | 350 | 1060 |

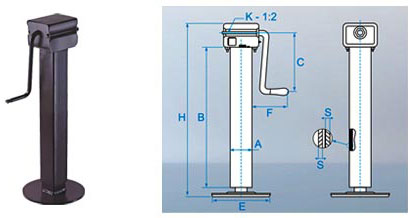

| Parking Jack Heavy Type With Reduction Gear And Lateral Handle | |||||||||
| ART. | Dim. A | Dim. B | Dim. C | E | F | H | S | STROKE | Static Cap. |
| SDI-PJ001HWG | 70 | 500 | 220 | 220 | 185 | 620 | 3 | 400 | 3000 |
| SDI-PJ002HWG | 70 | 600 | 220 | 220 | 185 | 720 | 3 | 500 | 3000 |
| SDI-PJ003HWG | 70 | 700 | 220 | 220 | 185 | 820 | 3 | 500 | 3000 |
| SDI-PJ004HWG | 70 | 800 | 220 | 220 | 185 | 920 | 3 | 500 | 3000 |
| SDI-PJ005HWG | 80 | 500 | 220 | 220 | 180 | 620 | 3 | 400 | 3000 |
| SDI-PJ006HWG | 80 | 600 | 220 | 220 | 180 | 720 | 3 | 500 | 3000 |
| SDI-PJ007HWG | 80 | 800 | 220 | 220 | 180 | 920 | 3 | 500 | 3000 |
| Parking Jack “Light Type” | ||||||||||
| ART. | Dim. A | Dim. B | Dim. C | E | H | SE | SI | D | STROKE | STATIS CAP. |
| SDI-PJ001L | 40 | 360 | 115 | 95 | 500 | 2 | 2 | 18 | 250 | 400 |
| SDI-PJ002L | 60 | 660 | 115 | 160 | 840 | 3 | 2 | 18 | 450 | 700 |
| SDI-PJ003L | 50 | 460 | 115 | 160 | 610 | 3 | 2 | 18 | 250 | 600 |
| SDI-PJ004L | 50 | 560 | 115 | 160 | 710 | 3 | 2 | 18 | 350 | 600 |
| SDI-PJ005L | 60 | 460 | 115 | 160 | 610 | 3 | 2 | 18 | 350 | 700 |
| SDI-PJ006L | 60 | 560 | 115 | 160 | 710 | 3 | 2 | 18 | 450 | 700 |
| SDI-PJ007L | 70 | 460 | 180 | 160 | 640 | 3 | 3 | 22 | 350 | 1200 |
| SDI-PJ008L | 70 | 660 | 180 | 160 | 840 | 3 | 3 | 22 | 500 | 1200 |
| SDI-PJ009L | 70 | 660 | 180 | 160 | 840 | 3 | 3 | 22 | 500 | 1200 |
