Top link Locking Collar

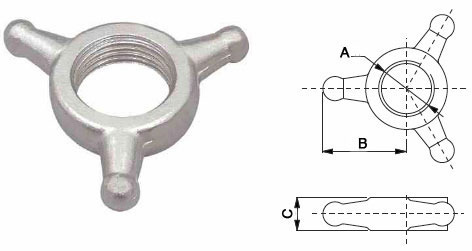

TOP LINK LOCKING COLLAR (FORGED) | |||
ART. | A | B | C |
SF-LOCL273F | M27X3 | 45 | 18 |
SF-LOCL303F | M30X3 | 45 | 18 |
SF-LOCL3035F | M30X3.5 | 45 | 18 |
SF-LOCL363F | M36X3 | 50 | 15 |
SF-LOCL403F | M40X3 | 50 | 15 |
SF-LOCL423F | M42X3 | 50 | 15 |

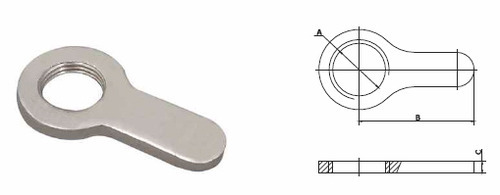

TOP LINK LOCKING COLLAR (PLATE) | |||
ART. | A | B | C |
SF-LOCL2225P | M22X2.5 | 60 | 6 |
SF-LOCL2425P | M24X2.5 | 60 | 6 |
SF-LOCL243P | M24X3 | 60 | 6 |
SF-LOCL273P | M27X3 | 60 | 6 |
SF-LOCL303P | M30X3 | 60 | 6 |
SF-LOCL3035P | M30X3.5 | 60 | 6 |
SF-LOCL363P | M36X3 | 88 | 10 |
SF-LOCL403P | M40X3 | 88 | 10 |

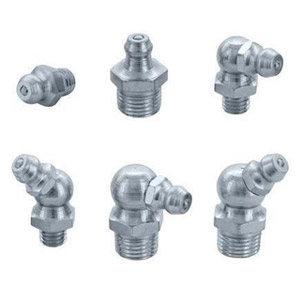

GREASE NIPPLES | ||
ART. | Size | Type |
SF-GNIP01 | M6X1 | STRAIGHT |
SF-GNIP02 | M8X1 | STRAIGHT |
SF-GNIP03 | M10X1 | STRAIGHT |
SF-GNIP04 | M6X1 | 45 |
SF-GNIP05 | M8X1 | 45 |
SF-GNIP06 | M10X1 | 45 |
SF-GNIP07 | M6X1 | 90 |
SF-GNIP08 | M8X1 | 90 |
SF-GNIP09 | M10X1 | 90 |
