Draw Bar

Draw Bar ( 63x25 )
ART.	No of Holes	lift Arm Spacing A (mm)	HoleB (mm)	Pin C (mm)	Thickness D (mm)	Width E (mm)
SDI-DB00	7	508..00	16.00	15.50	16.00	50.00
SDI-DB01	7	508..00	19.50	22..00	25.40	63.00
SDI-DB02	11	660.40	19.50	22.00	25.40	63.00
SDI-DB03	11	660.40	19.50	28.00	31.00	75.00
	13	812.80	19.50	28.00	31.00	75.00
SDI-DB04	13	812.80	19.50	28.00	31.00	75.00
SDI-DB05	11	660.00	19.50	22.00	30.00	63.00
SDI-DB06	7	812.80	29.00	28.00	31.00	75.00
SDI-DB07	5	965.20	32.00	36.00	45.00	90.00

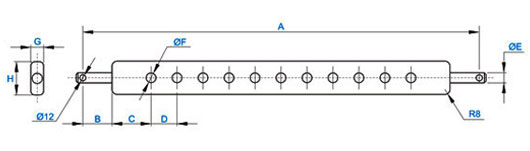

Draw Bar (63x30)
ART.	H	G	Holes	A	B	C	D	E	b
SDI-DB08	63	30	7	1003	60	181	80	28.5	25.4
SDI-DB09	63	30	7	683	49	113	54	22	20
SDI-DB10	63	30	9	758	49	114	54	22	20
SDI-DB11	63	30	9	781	60	114	54	28.5	20
SDI-DB12	63	30	7	962	60	181	80	28.5	28
SDI-DB13	63	30	9	796	57.5	125	55	21.6	22.2
SDI-DB14	63	30	9	800	70	113.3	54	28	22
SDI-DB15	63	30	11	766	60	60	54	28	20
SDI-DB16	63	30	11	945	60	114	60	28	22
SDI-DB17	63	30	9	800	58	118	22	22	22
SDI-DB18	63	30	9	800	126	51	70	28	22
SDI-DB19	63	30	11	765	52	60	54	22	22
SDI-DB20	63	30	11	781	60	60	54	28	22
SDI-DB21	63	30	9	770	55	110	55	22	20
SDI-DB22	63	30	9	770	55	110	55	28	20
SDI-DB23	63	30	3	440	55	110	55	22	20
SDI-DB24	63	30	11	766	53	60	54	22	20
SDI-DB25	63	30	11	780	60	60	54	28	20
SDI-DB26	63	30	3	440	57	110	54	22	19
SDI-DB27	63	30	9	800	70	114	54	28	22
SDI-DB28	63	30	11	810	60	75	54	28.5	20
SDI-DB29	63	30	9	620	50	71	47.5	22	26
