Shreedhar Industries

Linch Pins

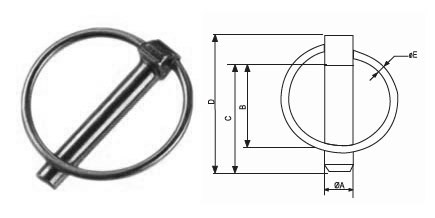

LINCH PIN
ART.	A	B	C	D	E
SDI-LP001	4.5	28.6	35	44	3
SDI-LP002	4.5	33	40	48	3
SDI-LP003	6	36.5	45	54	3.2
SDI-LP004	6	60	70	80	3.5
SDI-LP005	7	36.5	45	55	3.3
SDI-LP006	8	36.5	45	54	3.3
SDI-LP007	8	60	70	80	3.5
SDI-LP008	9	36.5	45	56	3.3
SDI-LP009	10	36.5	45	56	3.5
SDI-LP010	10	42	51	62	3.5
SDI-LP011	10	36.5	45	56	3.5
SDI-LP012	11	39	51	61	3.5
SDI-LP013	12	36.5	45	56	3.5

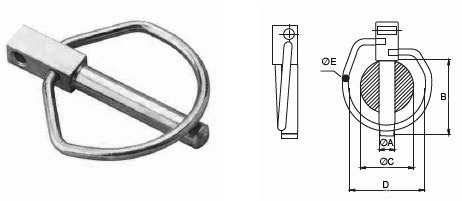

LINCH PIN DIN 11023
ART.	A	B	C	D	E
SDI-LPDIN4532	4.5	32	25	31.00	2.50
SDI-LPDIN 5542	5.5	42	32	44.80	3.60
SDI-LPDIN7542	7.5	42	32	44.80	3.60
SDI-LPDIN9545	9.5	45	32	44.80	3.60
SDI-LPDIN1145	11	45	32	44.80	3.60
SDI-LPDIN1155	11	55	45	52.00	4.00
SDI-LPDIN1660	16	60	45	52.00	4.00

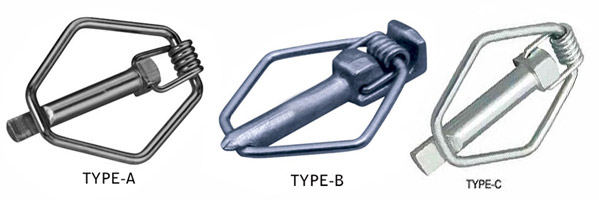

SPRING LINCH PIN
ART.	DIA	TYPE
SDI-SLP 85	8.5	A
SDI-SLP 105	10.5	A
SDI-SLP 11	11	B
SDI-SLP 155	15.5	C

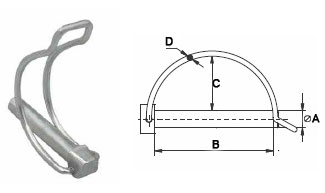

PIPE LINCH PIN
ART.	A	B	C	D
SDI-PLP04540	4.5	40	18	3
SDI-PLP0632	6	32	18	3
SDI-PLP0640	8	40	18	3
SDI-PLP0645	8	45	22	3
SDI-PLP0840	8	40	18	3
SDI-PLP0845	8	45	22	3
SDI-PLP0850	8	50	25	3
SDI-PLP0860	8	60	28	3
SDI-PLP1040	10	40	25	3
SDI-PLP1050	10	50	25	3
SDI-PLP1060	10	60	28	3
SDI-PLP1070	10	70	28	3

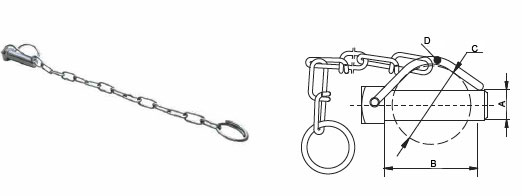

SQUARE HEAD LINCH PIN WITH CHAIN FOR PIPE
ART.	A	B	C	D
SDI-PLP1248	12	48	44	4
SDI-PLP1448	14	48	44	4
SDI-PLP1650	16	50	44	4
SDI-PLP1960	19	60	48	4

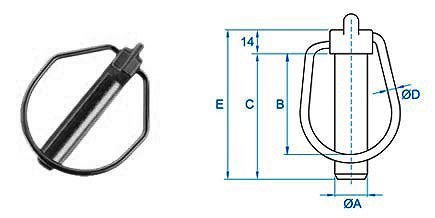

Forged Linch Pins
ART.	A	B	C	D	E
SDI-PLP1148	11	48	52	4	66
SDI-PLP1556	15	56	60	4	74

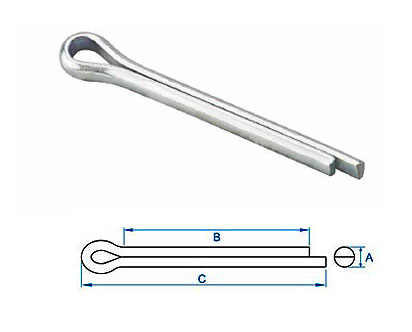

PPLit Pins
ART.	A	B	C
SDI1620	1.6	20	28
SDI1625	1.6	25	33
SDI2020	2	20	28
SDI2025	2	25	33
SDI2028	2	28	35
SDI2032	2	32	40
SDI2040	2	40	50
SDI2520	2.5	20	28
SDI2540	2.5	40	50
SDI3225	3.2	25	35
SDI3240	3.2	40	50
SDI4025	4	25	35
SDI4032	4	32	45
SDI4036	4	36	48
SDI5050	5	50	63
SDI5070	5	70	85
SDI6350	6.3	50	64
SDI6370	6.3	70	85
SDI6380	6.3	80	98
SDI8063	8	63	87
SDI8080	8	80	104
SDI80100	8	100	124
SDI80125	8	125	150
SDI1063	10	63	91
SDI10125	10	125	153
SDI13125	15	125	160
SDI13140	13	140	175
